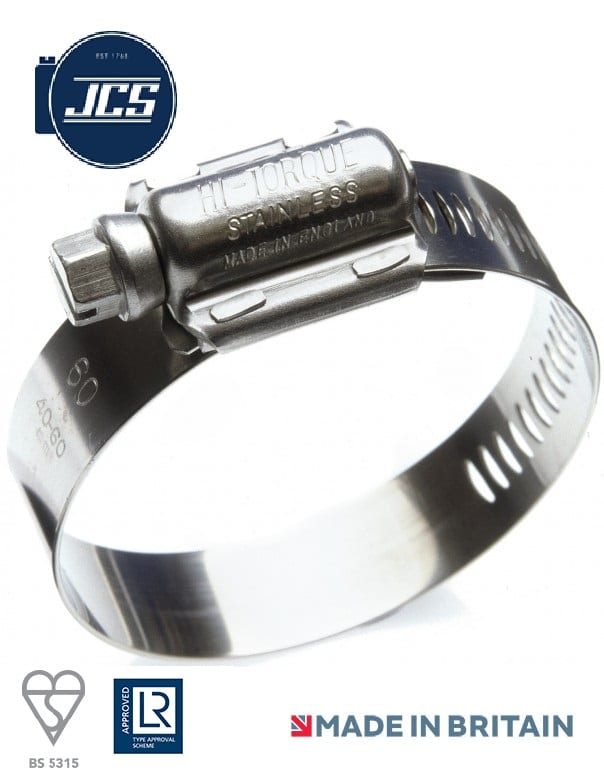

JCS Hi Torque

JCS Hi Torque

HI-TORQUE Heavy Duty Stainless Steel Hose Clamps have been specifically designed for tough and wire reinforced hoses and for when an extra margin of safety and reliability is required.

HI-TORQUE clamps out perform nut and bolt type clamps due to their more uniform tightening which gives higher sealing pressure.

Stainless steel.

In stock

£0.00

Details


JCS Hi-Torque heavy duty stainless steel hose clamps have been specifically designed for tough and wire reinforced hoses and for when an extra margin of safety and reliability is required. HI-TORQUE clamps out perform nut and bolt type clamps due to their more uniform tightening which gives higher sealing pressure. They are quicker to fit, have no loose parts to lose in awkward places and require less space than any other heavy duty hose clamp. Hi-Torque clamps also offer a larger adjustment for each size than nut and bolt clamps thus reducing inventory requirements.

JCS Hi-Torque heavy duty hose clamps are maunufactured to BS5315, are Lloyd’s register approved, BSI Kitemarked and have N.A.T.O. approvals.

TOOLS
For Hi-Torque and MULTI-TORQUE a special combined screwdriver and T-bar tool is available.

HI-TORQUE STRAPS
The strength of Hi-Torque clamps is utilised in our straps which are used for scores of applications.

STRAIGHT LINE HOUSING
The Hi-Torque design has a unique ‘Straight Line’ housing, which ensures that every thread of the screw is fully engaged with the band. This special feature together with a high tensile band and hardened rolled thread screw means that Hi-Torque clamps have more than twice the strength of ordinary worm drive hose clips.



HI Torque








Additional Information

Technical Specification

RECOMMENDED SETTING TORQUE    15Nm (130 lb.tn)

BAND TENSILE STRENGTH                   1150 N/mm2 approx. (75 tons/in2)

MATERIAL SPECIFICATIONS                 TYPE HTM - STAINLESS STEEL 304
                                                                  All parts BS304 - EN 1.4301/1.4576

Size Chart.

Stock Code Size Diameter (mm) Diameter (ins.)
HT027 27 20-27  3/4 - 1 1/8
HT030 30 20-30 3/4 - 1 1/4
HT035 35 20-35 3/4 - 1 3/8
HT040 40 25-40 1 - 1 1/5
HT045 45 25-45 1 - 1 3/4
HT050 50 30-50 1 1/4 - 2
HT060 60 40-60 1 5/8 - 2 3/8
HT065 65 45-65 1 3/4 - 2 1/2
HT070 70 50-70 2 - 2 3/4
HT080 80 60-80 2 3/8 - 3 1/8
HT090 90 70-90 2 3/4 - 3 1/2
HT095 95 75-95 3 - 3 3/4
HT100 100 80-100 3 1/8 - 4
HT115 115 85-115 3 3/8 - 4 1/2
HT120 120 90-120 3 1/2 - 4 3/4
HT140 140 110-140 4 3/8 - 4 1/2
HT160 160 130-160 5 1/8 - 6 1/4
HT180 180 150-180 5 7/8 - 7
HT200 200 170-200 6 3/4 - 7 7/8
HT220 220 190-220 7 1/2 - 8 5/8
HT240 240 210-240 8 1/4 - 9 1/2
HT260 260 230-260 9 - 10 1/4
HT280 280 250-280 9 7/8 - 11
HT300 300 270-300 10 5/8 - 11 3/4
HT320 320 290-320 11 3/8 - 12 1/2
HT340 340 310-340 12 1/4 - 13 3/8
HT360 360 330-360 13 - 14 1/8
HT380 380 350-380 13 3/4 - 15
HT400 400 370-400 14 1/2 - 15 3/4
HT420 420 390-420 15 3/8 - 16 1/2
HT440 440 410-440 16 1/8 - 17 1/4
HT460 460 430-460 17 - 18 1/8
HT480 480 450-480 17 3/4 - 18 7/8
HT500 500 470-500 18 1/2 - 19 5/8
