JCS Hi Grip Wing Screw Stainless

JCS Hi Grip Wing Screw Stainless

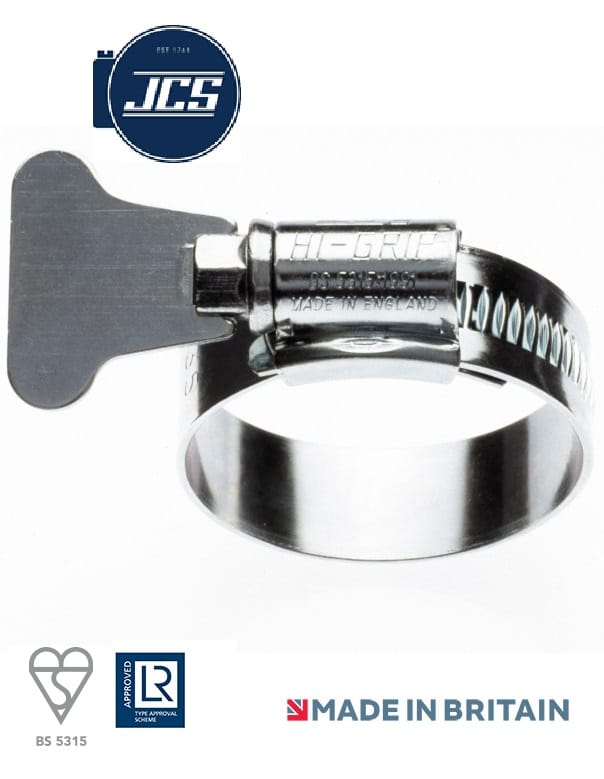

JCS Hi-Grip wing screw.
Stainless steel.



With or without covers.

In stock

£0.00

Details

The Hi-Grip wing screw hose clip was specifically designed to answer the problem of frequently removed hoses such as found in the garden, home, laboratory and industry. The unique dovetail locking and side lugs of the wing plate guarantee a firm fixture that outlasts those of other designs. They can be supplied with a soft plastic wing plate cover to protect fingers. The super free-running and high efficiency worm drive gives excellent sealing.

All Hi-Grip hose clips have fully rounded edges to give the best possible protection to the hose.

They are manufactured to BS5315 and have BSI Kitemark, Lloyds register approved and N.A.T.O. approved.

Stainless steel

Additional Information

Technical Specification

Size Chart

 Stainless Steel 304 grade

Stock Code Size Diameter (mm) Diameter (ins.)
TPS012 12 9.5 -12 3/8 - 1/2
TPS016 16 11-16 1/2 - 5/8
TPS020 20 13-20 1/2 - 3/4
TPS022 22 14-22 5/8 - 7/8
TPS025 25 17-25 3/4 - 1
TPS030 30 22-30 7/8 - 1 1/8
TPS035 35 25-35 1 - 1 3/8
TPS040 40 30-40 1 1/8 - 1 5/8
TPS045 45 35-45 1 3/8 - 1 3/4
TPS050 50 35-50 1 3/8 - 2
TPS055 55 40-55 1 5/8 - 2 1/8
TPS060 60 45-60 1 3/4 - 2 3/8
TPS070 70 50-70 2 - 2 3/4
TPS080 80 60-80 2 3/8 - 3 1/8
TPS090 90 70-90 2 3/4 - 3 1/2
