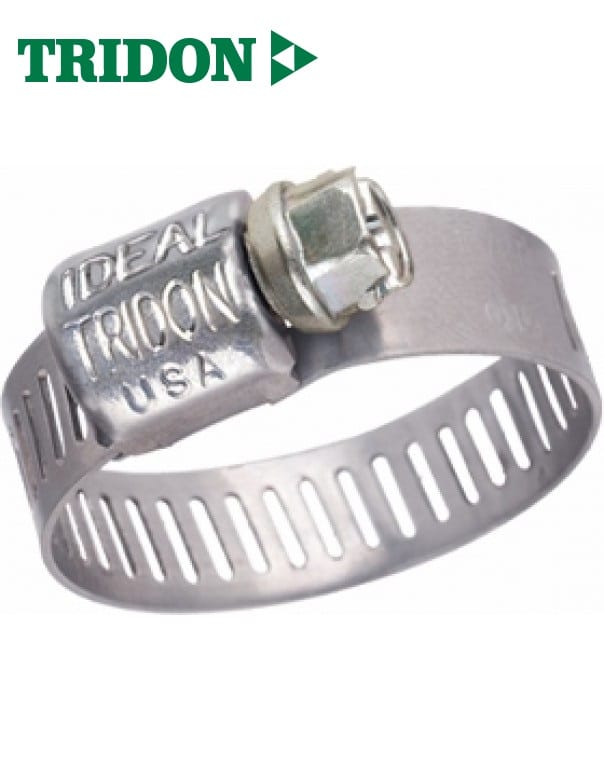

Tridon 350 Range 5/16" (8mm) Band width Full SS

Tridon 350 Range 5/16" (8mm) Band width Full SS

This U. S. designed worm drive hose clip, slips in where others are simply too big to fit.

Employing a narrow 5/16” (8mm) band width and smaller screw size 1/4” (6mm), it is able to fit into places that the ‘traditional’ wide band clips cannot be used.

Full stainless steel

In stock

£0.00

Details

Tridon 350 series, 8mm band width full stainless steel clips.

This U. S. A. design worm drive hose clip, slips in where others are simply too big to fit. Employing a narrow 5/16” (8mm) band width and smaller screw size 1/4” (6mm), it is able to fit into places that the ‘traditional’ wide band clips cannot be used.

Manufactured from stainless steel, and using the ‘slotted’ band design, the clip offers the user a great deal of strength as ‘the entire band’ is caught on the screw threads and not just half. The housing is shorter, which gives the user a far greater size range that each clip can be used for and starts from a tiny 6mm (1/4”).

Apllication uses:

  • Automotive (O. E. M. and Aftermarket)
  • Marine
  • Domestic (Various)
  • General Industry / Engineering






Additional Information

Technical Specification

Material Specifications

Screw: 1/4″ Hex Head; 300 Stainless

Housing: 300 Stainless

Band: 5/16″, 300 Stainless

Installation Torque: 10 to 15 in-lbs (1.1 to 1.7 Nm)



Stock Code
Size Min (mm)
Size Max (mm)
Size (Inches)
Size Max (inches)
T350-004
6
16
 1/4
5/8
T350-006
8
22
5/16
7/8
T350-008
11
25
 7/16
1
T350-010
10
27
 3/8
1 1/16
T350-012
14
32
 9/16
1 1/4
T350-016
16
38
 5/8
1 1/2
T350-020
25
44
 1
1 3/4
T350-024
31
51
 1 1/4
2
T350-028
38
57
 1 1/2
2 1/4
T350-032
44
63
 1 3/4
2 1/2
T350-036
50
70
 2
2 3/4
T350-048
72
89
 2 7/8
3 1/2
